The operating cost of high-temperature equipment depends not only on heating efficiency but also on how much heat is lost during production.
Kilns, heat treatment equipment, high-temperature piping, and heated tanks need to maintain their operating temperatures. When insulation performance declines, businesses often face more than increased energy consumption. Equipment surface temperatures can rise, workplace conditions can become hotter, and repairs and replacements can lead to downtime costs.
Selecting high-temperature insulation therefore requires consideration of thermal performance, installation space, environmental resistance, and long-term performance.
To address these needs, SuperTech Materials has introduced Metal Vacuum Insulation Panels. The panels combine a heat-resistant core, a vacuum insulation structure, and stainless steel encapsulation, providing another option for insulating industrial equipment.
High-Temperature Insulation: The Challenge of Long-Term Operation
Insulation in high-temperature industrial settings must withstand several conditions at the same time.
Continuous heat, equipment startups and shutdowns, temperature changes, moisture, dust, and oil contamination can all affect material performance. Some fibrous insulation materials may shrink, absorb moisture, shed fibers, or lose insulating capacity over time if material selection, installation, or protective measures are inadequate. These issues can keep energy consumption high and contribute to airborne dust, dust buildup on equipment, burn risks from hot equipment surfaces, and other operational safety concerns.
Meanwhile, increasingly compact equipment creates additional requirements for insulation systems: reducing heat loss while limiting insulation thickness and leaving room for installation and maintenance.
SuperTech Materials Metal Vacuum Insulation Panels are designed for prolonged high-temperature operation, continuous heat transfer, and varying wet and dry conditions. The design addresses limitations of conventional insulation materials through heat resistance, thermal insulation, safety features, service life, and a thin profile.
A Vacuum Insulation Structure with Metal Encapsulation

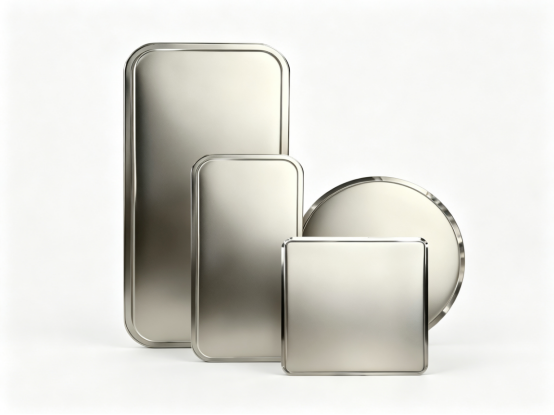

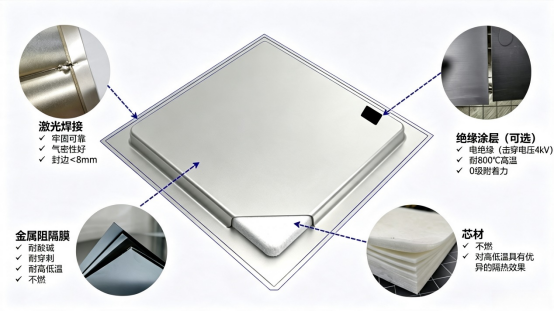

Unlike conventional loose insulation materials, SuperTech Materials Metal Vacuum Insulation Panels use a preformed SUS304 stainless steel bottom shell that is 0.1 mm thick. The shell is filled with a heat-resistant core and laser-welded to a stainless steel sheet of the same thickness, forming a sealed vacuum insulation structure.
The vacuum reduces heat transfer through gas, while the core design helps limit other forms of heat transfer, reducing outward heat loss.
The metal shell provides containment and protection, helping separate the core from the external environment. For high-temperature equipment, combining thermal insulation with external protection helps maintain performance over time.
Six Product Features Based on Equipment Requirements
01 Heat Resistance for Continuous Operation and Temperature Changes
Metal Vacuum Insulation Panels can accommodate operating temperatures up to 800°C and maintain consistent insulation performance at temperature levels of 200°C, 400°C, and 600°C.
The combination of a heat-resistant core and metal encapsulation helps reduce shrinkage, cracking, and powdering during high-temperature use. It also helps limit the effects of material shedding on equipment and the production environment, supporting insulation needs in continuous production and operations involving periodic startups and shutdowns.
02 Thermal Insulation with a Thinner Profile
Using SuperTech Materials vacuum insulation technology, Metal Vacuum Insulation Panels help control heat loss while allowing a more compact equipment insulation design.
To achieve equivalent insulation performance, the required thickness is approximately one-third that of conventional rock wool and one-half that of standard aerogel. The thinner profile helps reduce the space occupied by insulation and supports more compact equipment layouts. Reduced heat loss can also lower the energy needed to maintain operating temperatures.
03 Sealed Metal Construction for Moisture Resistance and Durability
SuperTech Materials Metal Vacuum Insulation Panels use welded stainless steel encapsulation to form a sealed enclosure. This helps prevent the entry of water vapor, moisture, dust, oil fumes, and mildly corrosive substances, limiting water absorption, moisture buildup, and related loss of insulation performance.
The panel surfaces resist compression, bending, punctures, and abrasion, supporting use in demanding industrial environments.
04 A1 Noncombustible Materials for High-Temperature Applications
The panels combine an inorganic, heat-resistant core with a flame-retardant metal structure and meet the A1 noncombustibility classification.
The materials are designed to resist ignition and combustion at high temperatures and to avoid burning droplets and toxic smoke, supporting consistent fire resistance in high-temperature use.
The panels are suitable for high-temperature production areas with elevated safety risks. They help reduce hazards associated with insulation fires, smoldering, and material deterioration and detachment, supporting safer production.
05 Longer Service Life to Reduce Operating and Maintenance Costs
Conventional insulation materials can develop widespread powdering, voids, detachment, and loss of performance within two to three years, requiring repeated shutdowns for replacement.
Metal Vacuum Insulation Panels have a stable structure and are designed to maintain performance while resisting temperature cycling, aging, and fatigue. Their service life can reach three to five times that of conventional materials. Longer service after installation helps reduce inspection, repair, rework, and replacement costs while supporting long-term insulation with fewer maintenance requirements.
06 Cleaner Installation and Custom Sizing for Different Applications
SuperTechMaterials’ Metal Vacuum Insulation Panels have a consistent shape and a rigid structure designed to limit powder shedding and airborne fibers. This helps keep installation areas clean and reduces the dust associated with conventional insulation installation.
Dimensions can be customized to suit equipment, tanks, piping, curved surfaces, and irregularly shaped chambers. The panels can be used for retrofits of existing equipment and integration into new projects, supporting straightforward installation, a close fit, and an even surface finish.
From Individual Panels to Complete Insulation Solutions

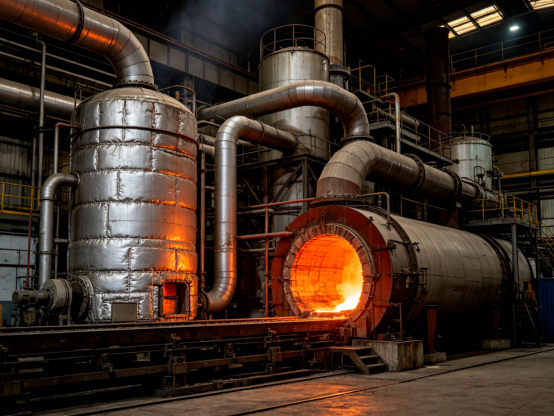

SuperTechMaterials’ Metal Vacuum Insulation Panels can be evaluated for use in industrial kilns, heat treatment furnaces, drying and curing equipment, industrial ovens, high-temperature reaction equipment, thermal piping, and high-temperature tanks. Thermal management applications in energy storage and precision equipment can also be explored based on specific requirements.
Temperature ranges, operating environments, and safety requirements vary by equipment. Effective use of the material requires considering product performance alongside equipment design, installation methods, and maintenance conditions.
For businesses, the value of high-temperature insulation ultimately lies in controlling heat loss during ongoing operation, improving workplace conditions, and managing maintenance costs.
By combining vacuum insulation technology with metal encapsulation, SuperTechMaterials’ Metal Vacuum Insulation Panels offer an approach that addresses space, insulation, and protection requirements, helping businesses pursue more efficient and reliable thermal management.
About SuperTechMaterials: Advancing Vacuum Insulation and Industrial Energy Efficiency
SuperTech Materials focuses on the research, development, and commercialization of high-performance vacuum insulation materials and their application in industrial settings. Metal Vacuum Insulation Panels combine a thin profile with sealed metal construction. By addressing insulation efficiency, operating stability, and maintenance needs in high-temperature equipment, they offer businesses another option for improving insulation systems.
SuperTech Materials will continue developing energy-saving materials and advancing their applications. The company will refine its high-temperature insulation solutions for different equipment and operating conditions, helping businesses reduce heat loss and manage operating costs while supporting the transition to lower-carbon industrial production.
